Guangzhou Yuanxing Industrial Co., Ltd. Professional AP And Brembo Brake Caliper Disc Pad Kit
4 Years
| Ask Lasest Price | |
| Brand Name : | Jekit |
| Model Number : | GT6 |
| Price : | Factory price |
| Payment Terms : | Western Union, T/T,paypal |
| Supply Ability : | 600 sets per Month |
| Delivery Time : | 5-7 days |

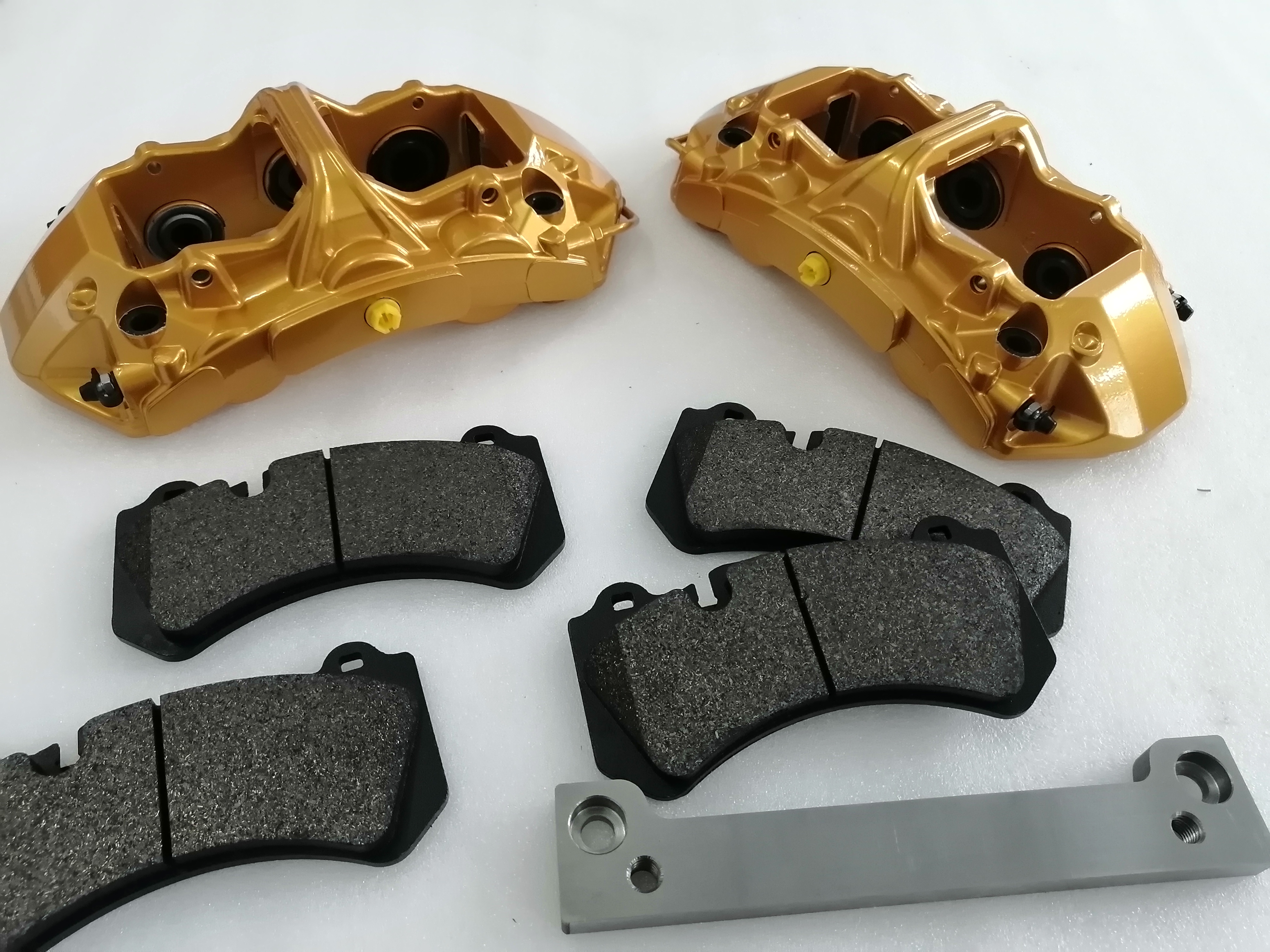

Golden GT6 Calipers And Pads With Brackets For Nissan R35 Front
Caliper:
Material: One-piece Forged Body
Craft: Aerial 6082 Aluminum Alloy
Piston: 6 big pistons, Made of Aluminum Alloy
Finish Treatment: High-temperature Baking Coating
Brake pad:
Material: Ceramic graphite
Heat-resistant: 0-500 ℃
Friction Coefficient: 0.49
Rotor (disc+center bell):
Craft: By Forging
Plane Bounce: <0.03mm
Bracket:
Material: Aerial 6061 Aluminum Alloy
Craft: By Forging
Product introduction
| Product Name | 6-pots caliper |
| Piston Size | φ38,φ34,φ30 |
| Outline Size | 330x165x98 |
| Brake Power | |
| Max Working Pressure | 13.7MPa |
| Asseblem Location | R/L |
| Assembly Plate Bore Distance | 200mm |
| Brake disc Dia. | 405mm 380mm 365mm 350mm 355mm |
| Disc thickness | 34mm 32mm |
| Structure | monoblock |
| Reference No. | GT6 |
| Application | Audi, , BMW, , Benz, , Ferrari, 360/430, Chevrolet, Camaro , Benz, AMG/CLS/E/SL, Porsche, 996/997/Turbo/GT3/Cayenne, , Land Rover, |
| Color | yellow red black nature |
Introduction to retrofitting caliper support
The caliper bracket are the components connecting the modified caliper to the vehicle. Each set of caliper bracket is customized according to the model, caliper model and disc data. Therefore, if you want the whole set of brakes to be perfectly installed in the wheel, the data requirements for the caliper support need to be very accurate.
Material classification
Jekit's caliper's bracket are mainly made of the following
materials: aluminum alloy 6061-T6, aluminum alloy t-7075 and 45
steel.
Aluminum alloy has the characteristics of high strength, light
weight and good heat dissipation. For the braking system, aluminum
alloy has great advantages, so aluminum alloy is used in most
cases.
6061-T6: aluminum alloy element accounts for 97.9%, magnesium
element accounts for 1%, silicon element accounts for 0.6%, and
0.28% copper and 0.2% chromium are added.
T-7075: the main aluminum and zinc metal elements account for 90%
and 5.6% respectively, while magnesium accounts for 2.5%, copper
accounts for 1.6%, chromium accounts for 0.23%, and finally the
rest are silicon, manganese, titanium and other metal elements.
Generally speaking, the strength of 7075 aluminum alloy is higher
than that of 6061 aluminum alloy, which is mainly because the
content of aluminum alloy in 7075 aluminum alloy is nearly 8% less
than that in 6061.
45 steel is generally applied to supports with limited data. (for
example, there are few threads and the length is short. The whole
strength needs to be guaranteed, which can not be achieved by
aluminum alloy)
