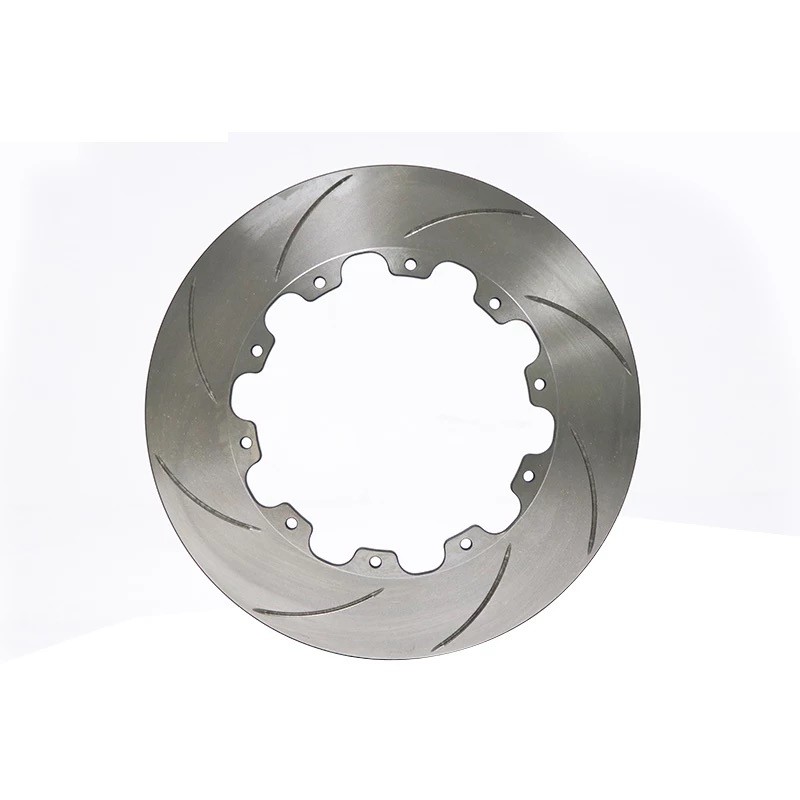

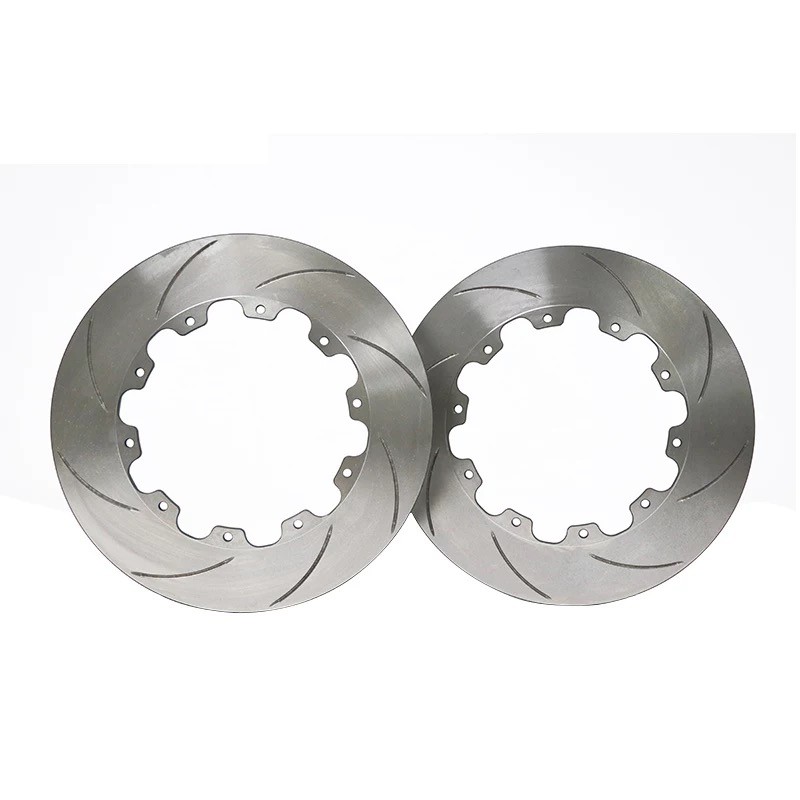

Jekit Car Brake Parts 330*28mm Cast Iron ARC Groove Disc For Front

Product Description

The material of Jekit brake discs adopts my country's gray cast iron 250 standard. The requirements for the three main elements of the chemical composition are: C: 3.1∽3.4 Si: 1.9∽2.3 Mn: 0.6∽0.9. Mechanical performance requirements: tensile strength>=206MPa, bending strength>=1000MPa, deflection>=5.1mm, hardness requirements between: 187∽241HBS.The carbon and silicon content in gray cast iron is generally controlled at 2% to 4% C, 1.0% to 2.0% Si, and 0.5% to 1.4% Mn. Gray cast iron has good casting performance, good vibration damping, good wear resistance, good cutting performance, and low notch sensitivity.
Mechanical performance requirements: tensile strength> 21on/mm, hardness requirements between 187 and 241, and some special or high-end models also use ceramics, high-carbon double aluminum alloys, etc.
There are disc brakes, drum brakes and air brakes. Older cars have front and rear drums. Many cars have disc brakes both front and rear. Because disc brakes have better heat dissipation than drum brakes, they are not prone to thermal decay under high-speed braking, so their high-speed braking effect is good. But at low speed cold brakes, the braking effect is not as good as drum brakes. The price is more expensive than the drum brake. Therefore, many mid-to-high-end cars use full-disc brakes, while ordinary cars use front and rear drums, and relatively low-speed trucks and buses that require a large braking force still use drum brakes.
Drum brakes are sealed and shaped like drums. There are many brake pots in China. It turns when driving. Two curved or semicircular brake shoes are fixed inside the drum brake. When the brake is stepped on, the two brake shoes are stretched out under the action of the brake wheel cylinder, supporting the brake shoes to rub against the inner wall of the brake drum to slow down or stop.

1. Disc brakes have better heat dissipation than drum brakes, and they are less likely to cause brake degradation and brake failure when the brakes are continuously stepped on.

2. The size change of the brake disc after being heated does not increase the stroke of the brake pedal.

3. The disc brake system responds quickly and can do high-frequency braking actions, so it is more in line with the needs of the ABS system.

4. Disc brakes do not have the automatic braking effect of drum brakes, so the braking force of the left and right wheels is relatively even.

5. Because the brake disc has better drainage, it can reduce the situation of poor braking caused by water or sand.

6. Compared with drum brakes, disc brakes are simple in structure and easy to maintain.

Have you discussed the advantages of so many modified brake discs? If you like it, please contact the Jekit store. There are beautiful customer service and handsome customer service for you all day long. Looking forward to your coming, I believe we will become a very good partner.

Product parameter

reference picture

Guangzhou Yuanxing Industrial Co.Ltd was established in 2017 and is located in Room 302, building 5, No. 7, Laowu street, Dongping village, Yongping street, Baiyun District, Guangzhou ,China. The location is very excellent and the transportation is convenient. We have very rich industry experience and is a trusted supplier. The company has production equipment and skilled front-line employees. Our boss has been engaged in the transformation of automobile braking system since 2011, have about 10 years of experience in this industry. Since 2017, we have set up our own factory, which can provide you with the best price and the best quality products. We specialize in producing aluminum alloy center cap and bracket, which can be customized according to different car models. Meanwhile we also sell complete set brake kit included brake calipers/brake disc rotors/brake pads/brake hose/aluminum center cap and brackets. Our products have strict quality control from the procurement of raw materials to the sale of finished products. Our company purpose is customer first, trying our best to meet the needs of customers. Our company's products are sold worldwide. With excellent quality and reasonable value, quality service, to win the trust and praise of our customers . Warmly welcome to visit our company and factory. We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.
