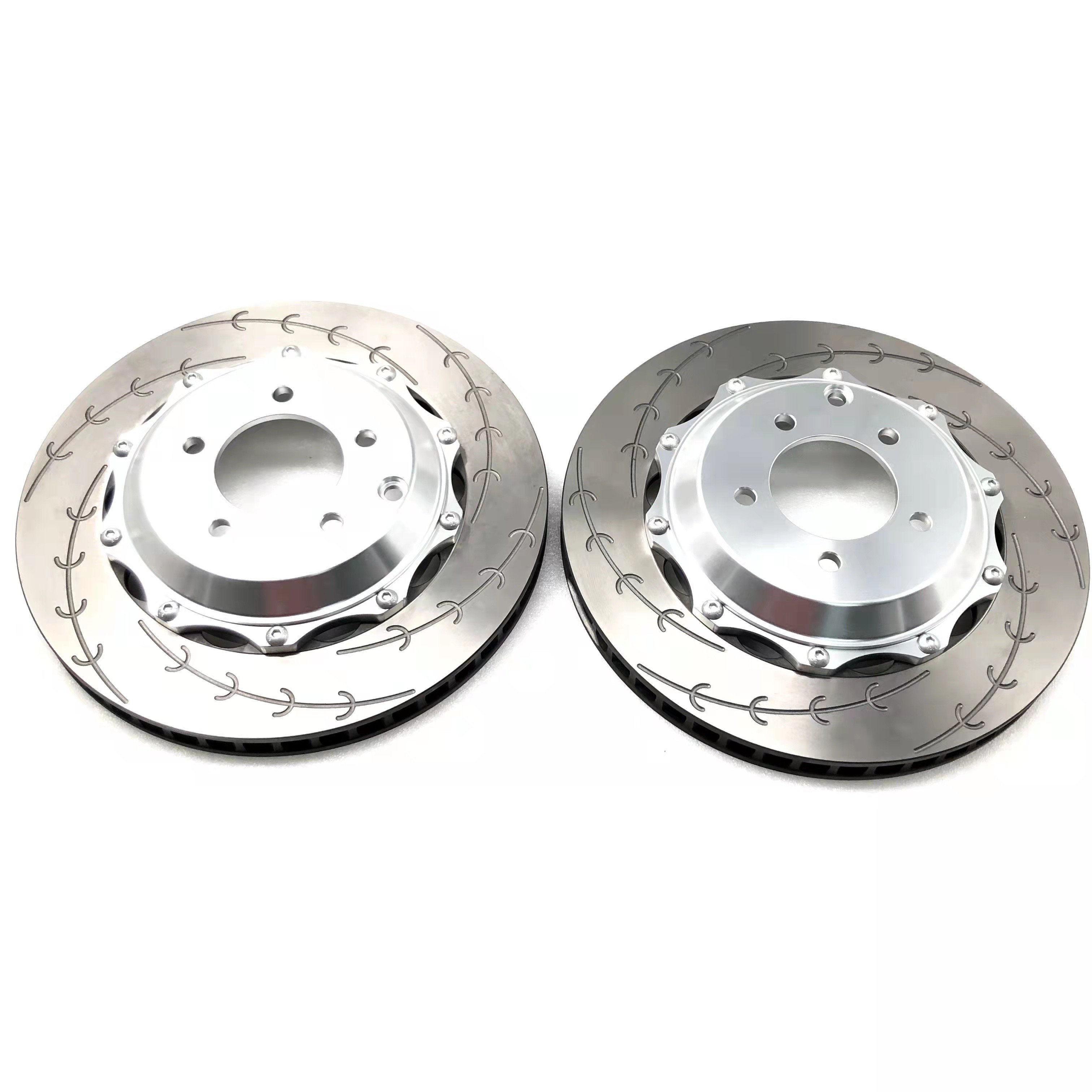

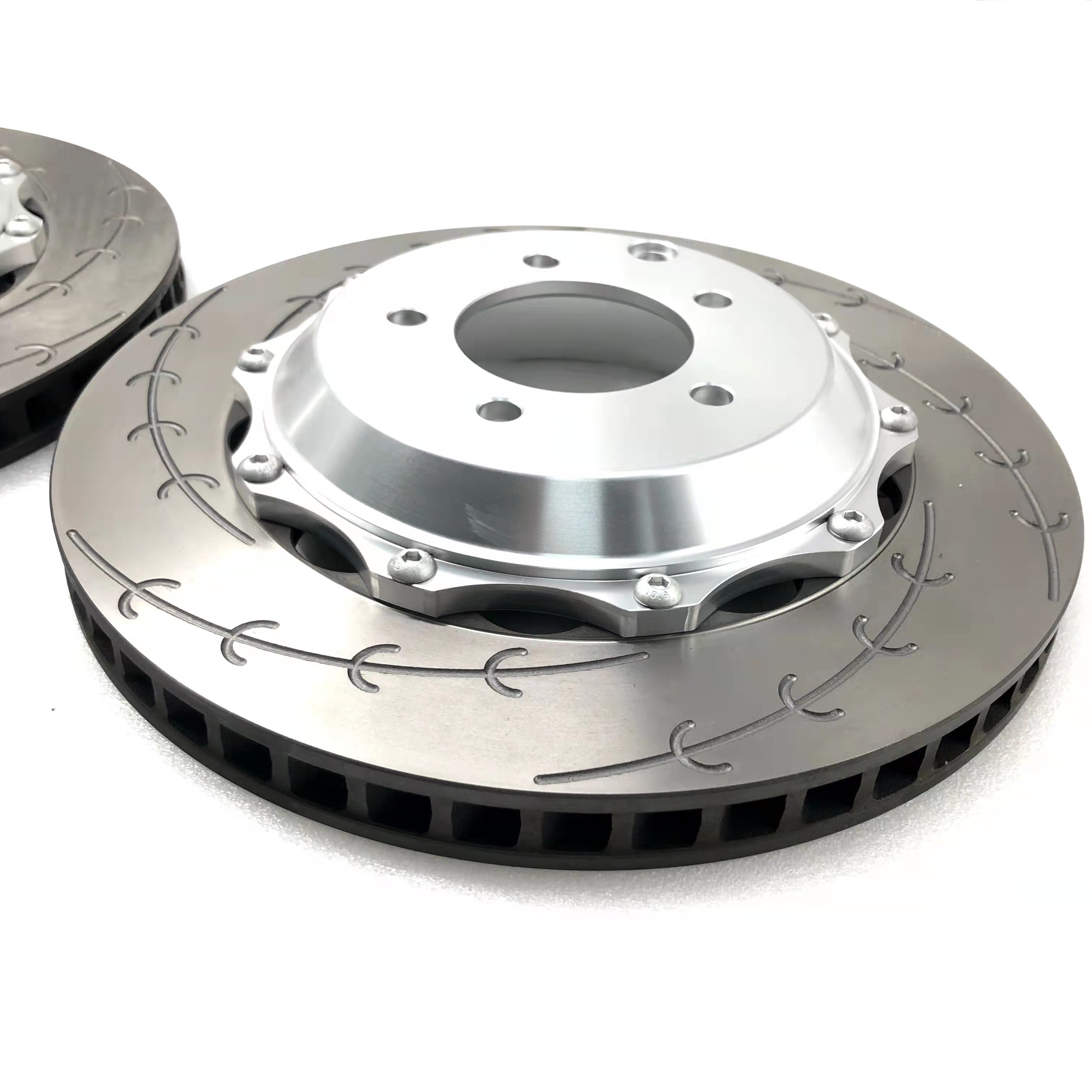

Jekit Brake Disc 380*34mm salix leaf Cast iron HT250 Brake Disc

380*34mm Disc Data

Locating Ring=217mm

PCD=241mm

Disc Area=61mm

Hole Diameter=9mm

Brake disc knowledge

NO.1
Appearance: the brake contact surface of the brake disc is unevenly worn, blue spots appear in its center, and cracks may appear.
Cause: incorrect installation of brake caliper and / or brake pad will lead to inconsistent angle of each brake pad relative to the brake disc and different wear speed of each side. The local severe overheating of the friction contact surface is the cause of blue spots.
Effect: excessive hot spots can cause gradual vibration and may also reduce braking efficiency.

Solution: If necessary, check and repair the brake caliper. Replace the brake pads and check that the type and shape of the new pads match the application.

No.2
Appearance: the small end of the brake disc is torn or broken from the brake surface of the brake disc.
Cause: mechanical stress due to misalignment of brake disc center during assembly. Incorrect assembly or positioning of brake caliper and brake disc leads to continuous asymmetric wear on the brake surfaces on both sides of the brake disc, and finally the small end of the brake disc is torn from the brake surface of the brake disc.
Impact: at the beginning, there will be huge noise and vibration in the braking process. When the small end of the brake disc breaks from the braking surface of the brake disc, it will lead to mechanical failure.

Solution:Thoroughly inspect the brake system and its associated components. Replace all faulty parts, install new brake discs, and tighten the brake discs according to the tightening torque and sequence recommended by the manufacturer. Before installing the brake disc, please check the assembly position of the brake caliper body on the axle

NO.3
Appearance: the contact surface between the brake disc and the wheel hub is deformed and / or cracked around it.
Cause: the tightening torque used for the set screw is too large.
Impact: vibration will occur during braking from the initial braking

Solution:Replace the brake disc and avoid using excessive tightening torque. The set screw is only used for brake disc positioning

NO.4
Appearance: the contact surface between brake disc and wheel hub is deformed or the mounting hole is cracked.
Cause: the tightening sequence of brake disc is incorrect, and the tightening torque used is not enough.
Effect: significant vibration will occur during initial braking.

Solution: Please replace the brake disc and fasten it in the correct installation sequence and according to the torque requirements recommended by the manufacturer

We have these size disc

285*24mm/295*24mm/300*24mm/330*24mm/300*28mm/330*28mm/345*28mm/345*32mm/355*28mm/355*32mm/360*28mm
362*32mm/365*34mm/370*36mm/380*28mm/380*32mm/380*34mm/380*36mm/390*36mm/400*36mm/405*34mm/410*36mm

Guangzhou Yuanxing Industrial Co.Ltd was established in 2017 and is located in Room 302, building 5, No. 7, Laowu street, Dongping village, Yongping street, Baiyun District, Guangzhou ,China. The location is very excellent and the transportation is convenient. We have very rich industry experience and is a trusted supplier. The company has production equipment and skilled front-line employees. Our boss has been engaged in the transformation of automobile braking system since 2011, have about 10 years of experience in this industry. Since 2017, we have set up our own factory, which can provide you with the best price and the best quality products. We specialize in producing aluminum alloy center cap and bracket, which can be customized according to different car models. Meanwhile we also sell complete set brake kit included brake calipers/brake disc rotors/brake pads/brake hose/aluminum center cap and brackets. Our products have strict quality control from the procurement of raw materials to the sale of finished products. Our company purpose is customer first, trying our best to meet the needs of customers. Our company's products are sold worldwide. With excellent quality and reasonable value, quality service, to win the trust and praise of our customers . Warmly welcome to visit our company and factory. We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.
