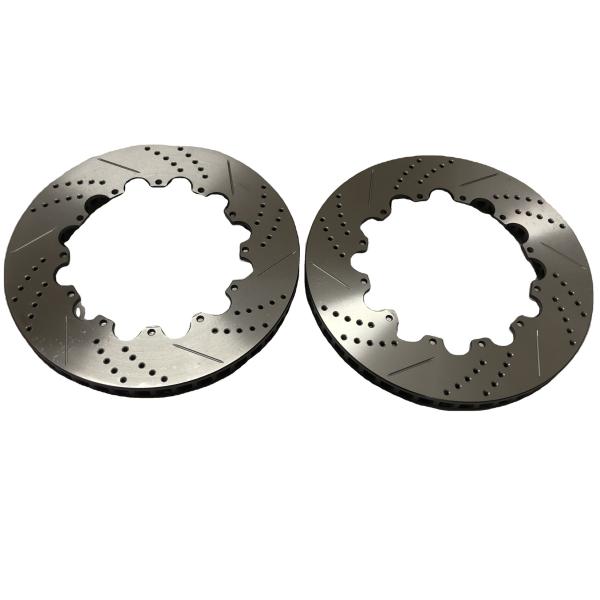

Jekit Car Iron 250 meterial Disc 355x28mm fit for rim18/19 rear

What material is the car brake disc made of?
The brake disc is made of gray cast iron 250 standard in China. The requirements for the three main elements of chemical composition are: C: 3.1 ∽ 3.4, Si: 1.9 ∽ 2.3, Mn: 0.6 ∽ 0.9. Mechanical property requirements: tensile strength > = 206mpa, flexural strength > = 1000MPa, deflection > = 5.1mm, hardness requirements: 187 ∽ 241hbs..

There are disc brakes, drum brakes and air brakes. Many older cars have drum brakes at the front and back. Many cars have disc brakes at the front and rear. Because the heat dissipation of disc brake is better than that of drum brake, it is not easy to produce heat recession under high-speed braking, so its high-speed braking effect is good. However, in low-speed cold braking, the braking effect is not as good as drum braking. The price is more expensive than drum brake. Therefore, many medium and high-grade cars use full disc brake, while ordinary cars use front disc and rear drum, while trucks and buses with relatively low speed and large braking force still use drum brake.

Drum brake is sealed and shaped like a drum. There are many brake pots in China. It turns when driving. Two arc or semicircle brake shoes are fixed inside the drum brake. When stepping on the brake, the two brake shoes are stretched out under the action of the brake wheel cylinder, supporting the brake shoes and rubbing the inner wall of the brake drum to slow down or stop.

Advantages of disc brake:

1. The heat dissipation of disc brake is better than that of drum brake. When continuously stepping on the brake, it will not cause brake recession and brake failure.

2. The change of the size of the brake disc after heating does not increase the stroke of stepping on the brake pedal.

3. The disc brake system responds quickly and can do high-frequency braking action, so it is more in line with the requirements of ABS system.

4. Disc brake has no automatic braking effect of drum brake, so the braking force of left and right wheels is relatively average.

5. Due to the better drainage of the brake disc, the situation of poor braking caused by water or sediment can be reduced.

6. Compared with drum brake, disc brake has simple structure and easy maintenance.

The brake disc must be used for braking, and its braking force comes from the brake caliper. Generally speaking, the general brake caliper is fixed to the inner brake piston pump, and the outer side is a caliper structure. The inner brake pad is fixed to the piston pump, and the outer brake pad is fixed to the outer part of the caliper. The piston pushes the inner brake pad through the pressure from the brake oil pipe, At the same time, the caliper is pulled by the reaction force to make the outer brake pad inward. Both are pressed against the brake disc at the same time, and the braking force is generated through the friction between the brake disc and the inner and outer brake pads. In this process, the driving piston depends on the brake fluid, that is, hydraulic oil. This is assisted by the engine
For hand brake, the cable is used to forcibly pull the brake pads through a lever structure mechanism to make them compact with the brake disc, so as to generate braking force

Guangzhou Yuanxing Industrial Co.Ltd was established in 2017 and is located in Room 302, building 5, No. 7, Laowu street, Dongping village, Yongping street, Baiyun District, Guangzhou ,China. The location is very excellent and the transportation is convenient. We have very rich industry experience and is a trusted supplier. The company has production equipment and skilled front-line employees. Our boss has been engaged in the transformation of automobile braking system since 2011, have about 10 years of experience in this industry. Since 2017, we have set up our own factory, which can provide you with the best price and the best quality products. We specialize in producing aluminum alloy center cap and bracket, which can be customized according to different car models. Meanwhile we also sell complete set brake kit included brake calipers/brake disc rotors/brake pads/brake hose/aluminum center cap and brackets. Our products have strict quality control from the procurement of raw materials to the sale of finished products. Our company purpose is customer first, trying our best to meet the needs of customers. Our company's products are sold worldwide. With excellent quality and reasonable value, quality service, to win the trust and praise of our customers . Warmly welcome to visit our company and factory. We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.
